We are a leading GI (Galvanised Iron) Earthing Plates with Pipe and Funnel, GI Earthing Plates, GI Earthing Electrodes Manufacturer & Supplier from Pune, Maharashtra, India. We delivered our product range to customers in India including major cities like Mumbai, Nashik (Nasik), Chhatrapati Sambhajinagar (Aurangabad), Ahilyanagar (Ahmednagar), Karnataka, Bengaluru (Bangalore), Belgaum (Belagavi), Telangana (Hyderabad).

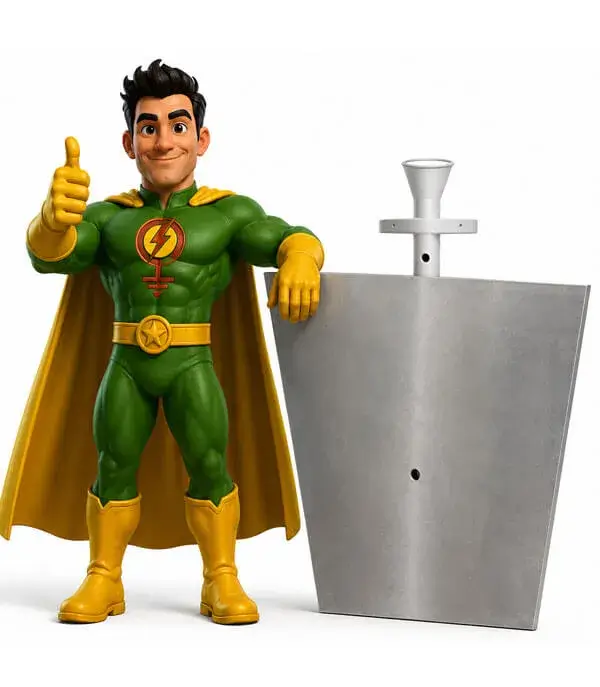

Shreenath Earthing Pvt. Ltd. is a trusted manufacturer and supplier of GI Earthing Plates with Funnel Pipes, designed to provide a dependable and long-lasting earthing solution for electrical safety. Our GI plates are fabricated from high-quality galvanized iron and are used along with funnel pipes for efficient water percolation and easy maintenance of the earth pit.
These plates are ideal for diverse electrical grounding requirements, especially in locations with high soil resistivity or where rod-type electrodes are not suitable.
Our GI Earthing Plate system is designed with superior surface contact to ensure fast fault current dissipation even in challenging soil conditions. The inclusion of a funnel pipe allows easy maintenance and regular watering, which helps maintain low resistance over the long term.
Fabricated from high-quality galvanized iron, each plate undergoes stringent quality checks to meet industrial standards. These earthing systems are especially effective in high-resistivity soil regions, where deep electrodes may not be feasible.
Shreenath Earthing Pvt. Ltd. also offers customization in plate sizes and funnel attachments based on the specific load and site requirements of our customers. Whether you're grounding a power substation or a multi-story commercial tower, our GI plate with funnel solution is both robust and reliable.
Industries
- Transformer and substation installations
- Process industries and chemical plants
- Electrical panels and switchgear grounding
- Solar and wind power systems
- Building infrastructure and large residential projects
- Railway and metro electrical systems
- Industrial and commercial facilities
Application
- Substations and grid installations
- Industrial and process control units
- Telecom base stations
- Control rooms and IT facilities
- Generators and transformer grounding
Technical Specifications
- Material: Galvanized Iron (GI)
- Standard Size: 600mm x 600mm x 6mm (custom sizes available)
- Galvanizing Thickness: 80 to 100 microns
- Plate Weight: Approx. 20-35 kg (varies by thickness)
- Accessories: Funnel with mesh, charcoal, salt, chamber cover (optional)
- Compliance: IS:3043, IEEE standards
Advantage
- Wide contact area for efficient fault current dissipation.
- Long-lasting corrosion protection due to galvanizing.
- Cost-effective for bulk installations.
- Easy installation with minimal maintenance.
- Improves soil conductivity through funnel water feed.
- Robust design ensures mechanical stability underground.
- Reliable performance across diverse soil conditions.
Features
- Heavy-duty GI plate construction for high conductivity.
- Funnel pipe ensures regular moisture content around plate.
- Corrosion-resistant galvanizing with long service life.
- Suitable for large-scale earthing setups.
- Compliant with IS 3043 and other industry standards.
Frequently Asked Questions — GI Earthing Plates with Pipe and Funnel
What is a GI Earthing Plate with Pipe and Funnel?
A GI Earthing Plate with Pipe and Funnel is a galvanized iron earthing system manufactured by Shreenath Earthing Pvt. Ltd. in Pune that provides efficient fault current dissipation with a funnel pipe allowing regular watering to maintain low earth resistance over long term.
What are the technical specifications of GI Earthing Plates?
Standard size 600mm x 600mm x 6mm, galvanizing thickness 80 to 100 microns, weight approx 20 to 35 kg with optional accessories including funnel with mesh, charcoal, salt and chamber cover complying with IS 3043 and IEEE standards.
Where are GI Earthing Plates with Pipe and Funnel used?
They are used in transformer and substation installations, solar and wind power systems, telecom base stations, railway and metro electrical systems and large commercial and residential projects across Maharashtra and India.
What are the advantages of GI Earthing Plates with Funnel?
They offer wide contact area for efficient fault current dissipation, long lasting corrosion protection, easy installation, improved soil conductivity through funnel water feed and reliable performance across diverse soil conditions.
Are GI Earthing Plates available in custom sizes?
Yes, Shreenath Earthing Pvt. Ltd. offers GI Earthing Plates in customizable sizes and funnel attachments based on specific load and site requirements across India.
How to buy GI Earthing Plates with Pipe and Funnel in Pune?
Contact Shreenath Earthing Pvt. Ltd. at Office No.324, MIDC Chinchwad, Pune or call +91-9527327636 for bulk orders and best price across India.
